Canon EOS 1N

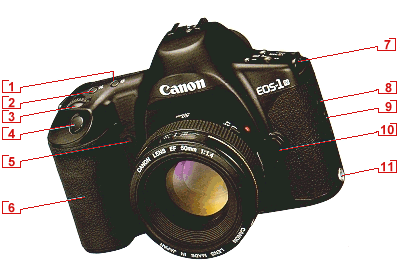

| Canon EOS-1n | 6 - Grip/Battery Chamber |
| 1 - LCD Panel Illumination Button | 7 - Strap Fixture |
| 2 - Exposure Compensation Button | 8 - Back Covel Lock Release button |
| 3 - Main Dial | 9 - Back Cover Latch |
| 4 - Shutter Button | 10 - Lens release Butoon |
| 5 - Self-Timer Indicator | 11 - PC Terminal |

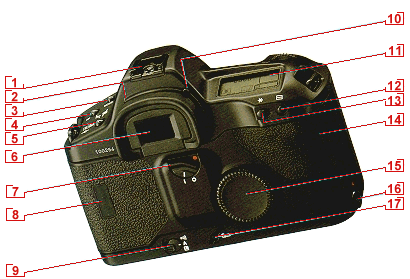

| 1 - X contacts/Accessory Shoe | 9 - Main Switch |
| 2 - Dioptric Adjustment Dial | 10 - Eyepiece Shutter Lever |
| 3 - Shooting Mode Selector | 11 - LCD Panel |
| 4 - AF Mode Selector | 12 - Focusing Point Selector |
| 5 - Metering Mode Selector/Flash | 13 - AE Lock Button |
| Exposure Compensation Button | 14 - Palm Door |
| 6 - Viewfinder Eyepiece | 15 - Quick Control Dial |
| 7 - Quick Control Dial Switch | 16 - Remote Control Socket (cover) |
| 8 - Film Window | 17 - Film Rewind Button |
